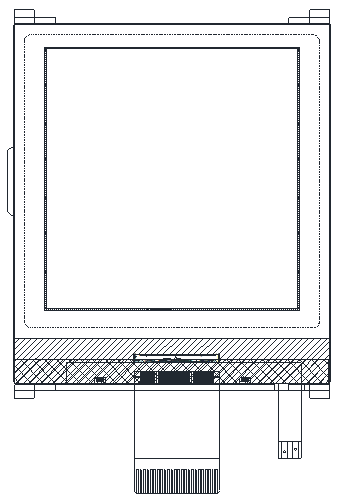

128x128 lcd display
|
Item |
Contents |
Unit |
|
Display format |
128 × 128 |
dots |
|
LCD duty |
1/128 |
-- |
|
LCD bias |
1/12 |
-- |
|
LCD voltage |
12.9 |
V |
|
Controller/Driver |
ST7541 |
-- |
|
Module size (W x H) |
46.0 × 54.4 |
mm |
|
Viewing area (W x H) |
43.0 × 42.8 |
mm |
|
Dot size (W x H) |
0.275 × 0.285 |
mm |
|
Dot pitch (W x H) |
0.29 × 0.30 |
mm |
