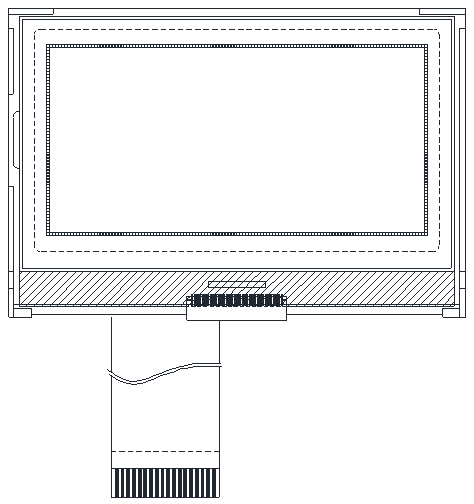

128x64 graphic module plg1206gw
|
Item |
Contents |
Unit |
|
Display format |
128 × 64 |
dots |
|
LCD duty |
1/64 |
-- |
|
LCD bias |
1/9 |
-- |
|
LCD voltage |
9.8 |
V |
|
Controller/Driver |
ST7565 |
-- |
|
Module size (W x H) |
80.0 × 54.0 |
mm |
|
Viewing area (W x H) |
70.7 × 38.8 |
mm |
|
Dot size (W x H) |
0.48 × 0.48 |
mm |
|
Dot pitch (W x H) |
0.52 × 0.52 |
mm |
