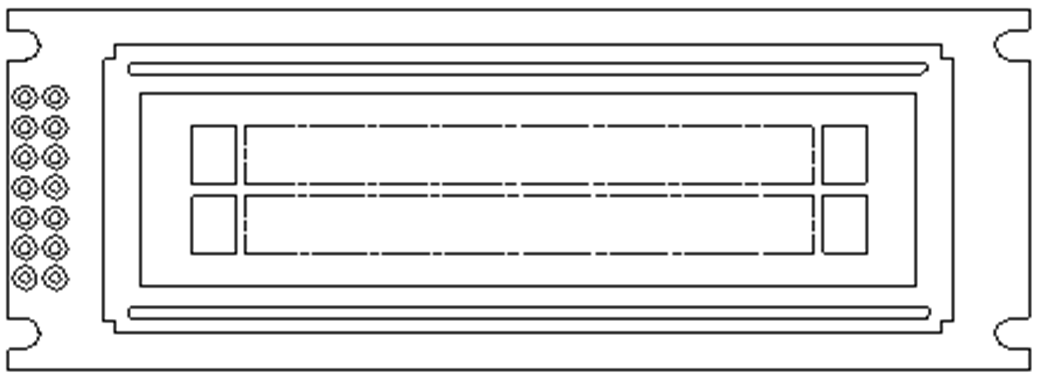

PMC1602D
|
Item |
Contents |
Unit |
|
Display format |
16 Characters x 2 Lines |
-- |
|
LCD duty |
1/16 |
-- |
|
LCD bias |
1/5 |
-- |
|
LCD voltage |
4.5 |
V |
|
Controller/Driver |
ST7066U or Equivalent |
-- |
|
Module size (W x H) |
85.0 x 30.0 |
mm |
|
Viewing area (W x H) |
64.5 x 16.0 |
mm |
|
Character size (W x H) |
2.96 x 4.86 |
mm |
|
Dot size (W x H) |
0.56 x 0.66 |
mm |
|
Dot pitch (W x H) |
0.60 x 0.70 |
mm |
